Sierra Series
2005 - 2014

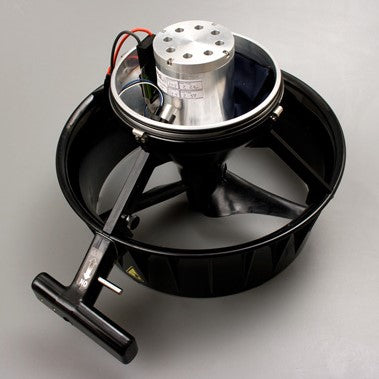

The Sierra X-Scooters are all modular so that you can interchange bodies to create the scooter for your specific diving needs. Many owners use the standard body and 2 batteries for general diving doing 2 dives a day, but also own the long body into which they can place the same 2 batteries for longer more technical dives. Either body can be balanced in fresh and saltwater via the integrated weighting system. The Sierra family uses the latest technology with a powerful brushless motor, NiMh batteries and electronic speed control. Trigger Shift on the Fly allows the user to select any one of 5 speeds with a simple click of the trigger.

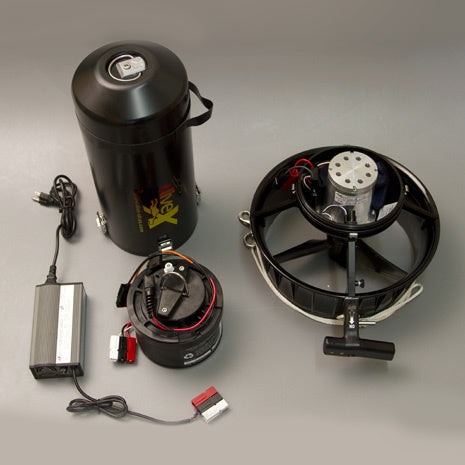

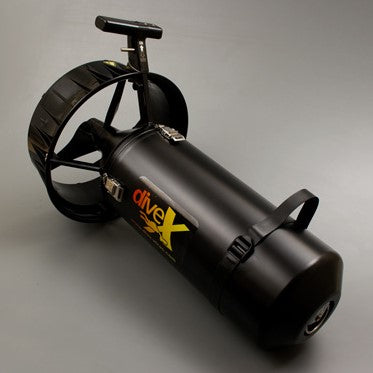

Sierra Standard Body

SCOOTER SPECIFICATIONS:
Depth Rating: 600ft (180m)
Weight: 37lbs (17kg)
Max Thrust: 35lbs (156N)
Max Speed: 182ft/min (55m/min)
Range at Max Speed/Max Drag: 1.4 miles (2.3km)
Runtime at Max Speed/Max Drag: 39 min
Cruise Range (150ft/min; 45m/min): 1.9 miles (3.1km)
Runtime at Cruise Speed: 65 min

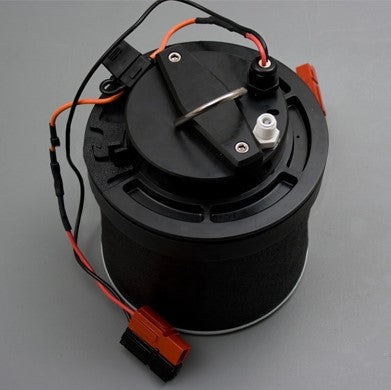

BATTERY SPECIFICATIONS:
Battery Chemistry: NiMh
Battery Voltage: 24V
Battery Capacity: Nominal 13Ah 310Wh
Cells: 1 x 20 F Cells
Charger: 110/240V
Charge Time: 4 hours

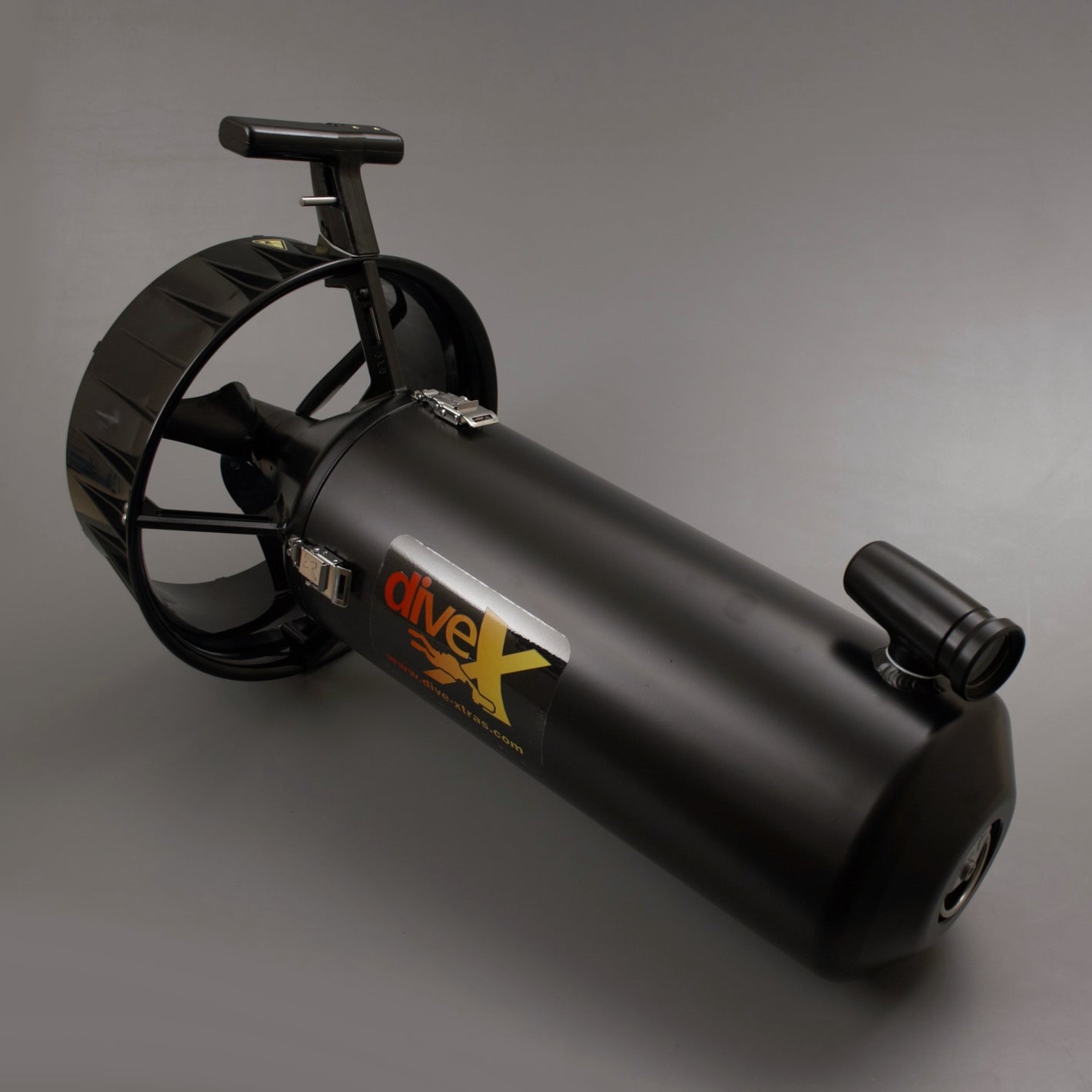

Sierra CSI

SCOOTER SPECIFICATIONS:
Depth Rating: 600ft (180m)
Weight: 38lbs (17.2kg)
Max Thrust: 35lbs (156N)
Max Speed: 182ft/min (55m/min)
Range at Max Speed/Max Drag: 1.4 miles (2.3km)
Runtime at Max Speed/Max Drag: 39 min
Cruise Range (150ft/min; 45m/min): 1.9 miles (3.1km)
Runtime at Cruise Speed: 65 min

BATTERY SPECIFICATIONS:
Battery Chemistry: NiMh
Battery Voltage: 24V
Battery Capacity: Nominal 13Ah 310Wh
Cells: 1 x 20 F Cells
Charger: 110/240V
Charge Time: 4 hours

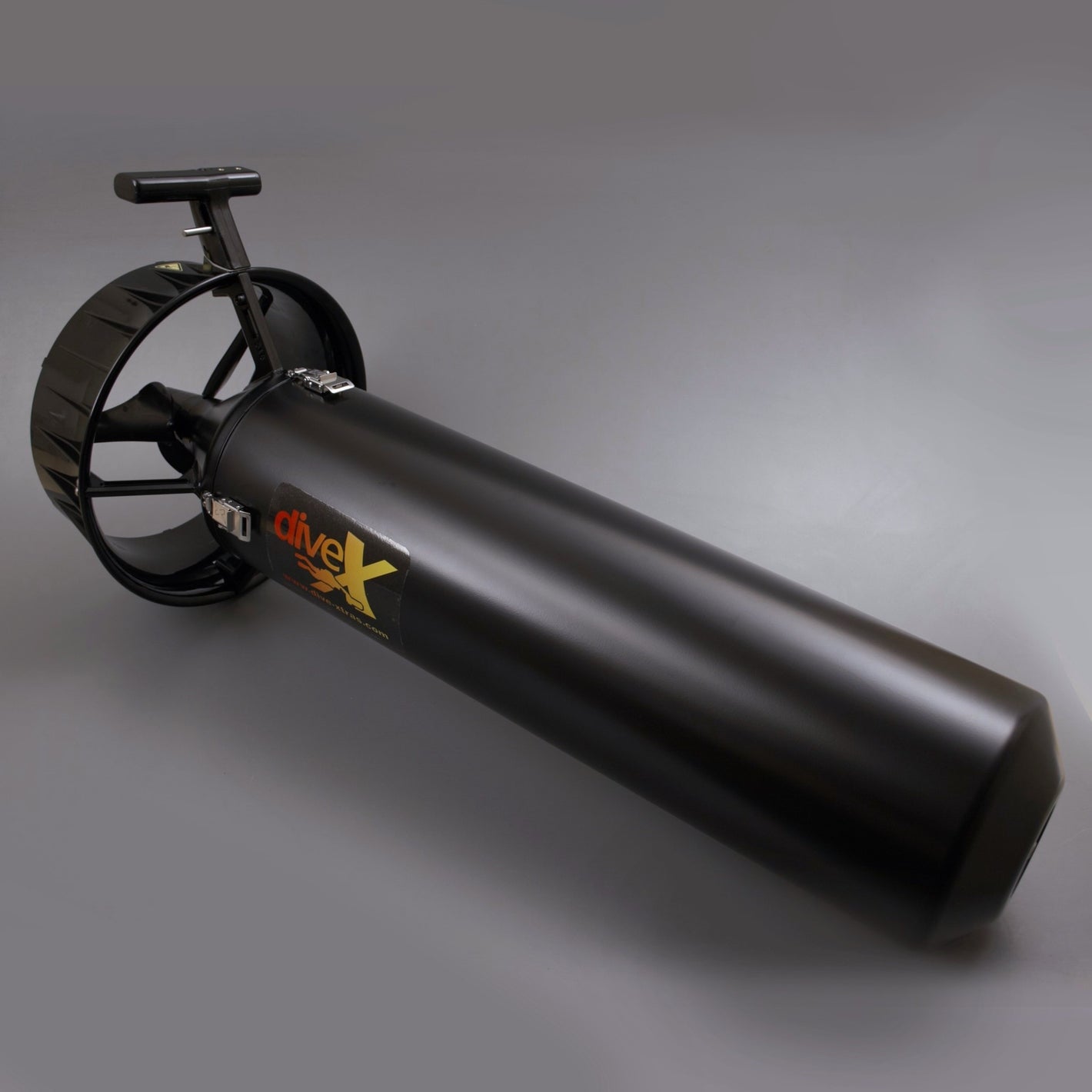

Sierra Long Body

SCOOTER SPECIFICATIONS:
Depth Rating: 600ft (180m)
Weight: 42bs (19kg)
Max Thrust: 35lbs (156N)
Max Speed: 182ft/min (55m/min)
Range at Max Speed/Max Drag: 2.8 miles (4.6km)
Runtime at Max Speed/Max Drag: 78 min
Cruise Range (150ft/min; 45m/min): 3.8 miles (6.2km)
Runtime at Cruise Speed: 130 min

BATTERY SPECIFICATIONS:
Battery Chemistry: NiMh
Battery Voltage: 24V
Battery Capacity: Nominal 13Ah 620Wh
Cells: 2 x 20 F Cells
Charger: 110/240V
Charge Time: 8 hours
