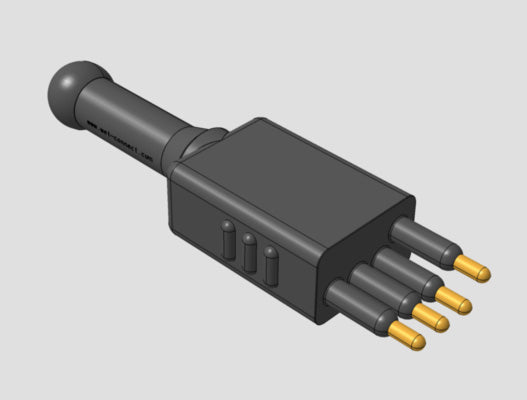

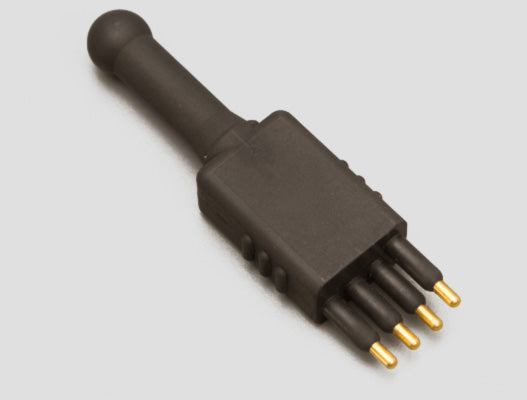

Part: 4P–M–D

A compact multi pole wetmatable underwater electrical connector. Useful where space is limited and multiple connections are needed.

This dummy plug can be fitted to any connector and protects it from the environment. These connectors should never be left exposed to water with any electrical charge across the contacts as corrosion can rapidly destroy the contacts. Using a dummy plug will prevent this.

Specifications

• Model: 4P–M–D
• Series: Low Profile
• Type: Dummy Plug
• Poles: 4
• Wet Matable: Yes
• Depth Rating: 10,000ft

Materials:

• Pin: CA-360 Brass, Gold Plated
• Socket: Beryllium Copper, Gold Plated
• Connector Body: Neoprene

CAD Models

Download 3d and 2D CAD files of this underwater electrical connector. File formats include IGES(.IGS), STEP(.STP) and PDF.

3D Formats



2D Format
