Piranha P1
Piranha P1
Description:

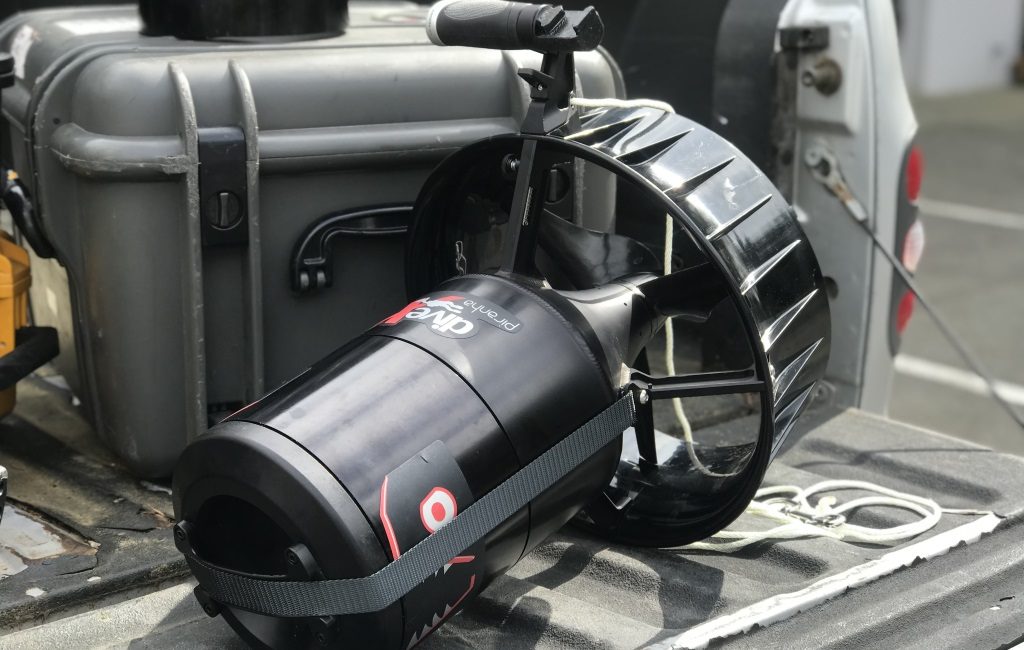

The Piranha P1 is everything you need for scooter diving! The Piranha is the lightest, most powerful dive scooter we could build; and to maximize utility for both technical and recreational divers we have made it modular. With neutrally buoyant battery modules you can build and dive the scooter you need. The Piranha comes neutrally weighted and balanced for both salt and fresh water, and includes an integrated GoPro camera mount, as well as the ability to upload data from your scooter to your Windows PC using an additional link cable. Designed and assembled in the USA.
Piranha P1 Standard Package:
- Piranha Tail Unit
- Piranha Power Tool Battery Body Assembly
- Piranha Nose Assembly
- Piranha Standard Spares Kit
- Piranha Shipping Box Set
Useful Links:
Piranha Scooter Features
Piranha User Manual
Piranha Diagrams
Specifications
Depth Rating | 600ft (180m) |
Weight | 24.6lbs (11.2kg) |
Max Thrust | 73lbs (326N) |
Max Speed | 268ft/min (82m/min) |
Range at Max Speed/Max Drag | 1.2 miles (1.9km) |
Run Time at Max Speed/Max Drag | 24 minutes |
Cruise Range (150ft/min; 45m/min) | 3.5 miles (5.8km) |
Run Time at Cruise Speed | 122 minutes |
Battery Specifications
Battery Chemistry | Lithium |
Battery Voltage | 36v from (2S2P) 4 x Power tool batteries, individually 20v Max (USA) 18v |
Battery Capacity | 400Wh 10Ah from (2S2P) 4 x Power tool batteries, individually 100Wh 5Ah |
Charger | See Power Tool Battery Charger: Typically 110/240V |
Charge Time | See Power Tool Battery Charger: Typically 1-3 hours |
Compatible with 5Ah, 20v (USA only) or 18v batteries that fit the DCB interface.
Tested with the following batteries:
- 4 x Enegitech 20V 5.0Ah Lithium Battery
- 4 x Batteriol 20V 5.0Ah Lithium Battery
- 4 x DeWalt DCB205 (USA) 20v Max 5.0Ah
- 4 x DeWalt DCB184 18v XR
Batteries and chargers not supplied unless requested.
Batteries only supplied to orders shipped within the United States.
