Dive-Xtras

Piranha PTB Module Kit - Discontinued

Piranha PTB Module Kit - Discontinued

Description

Our new power tool battery is a huge improvement on previous scooter batteries. It's compatible with all Piranha scooters and can be used together with older batteries in P1 and P3 configurations.

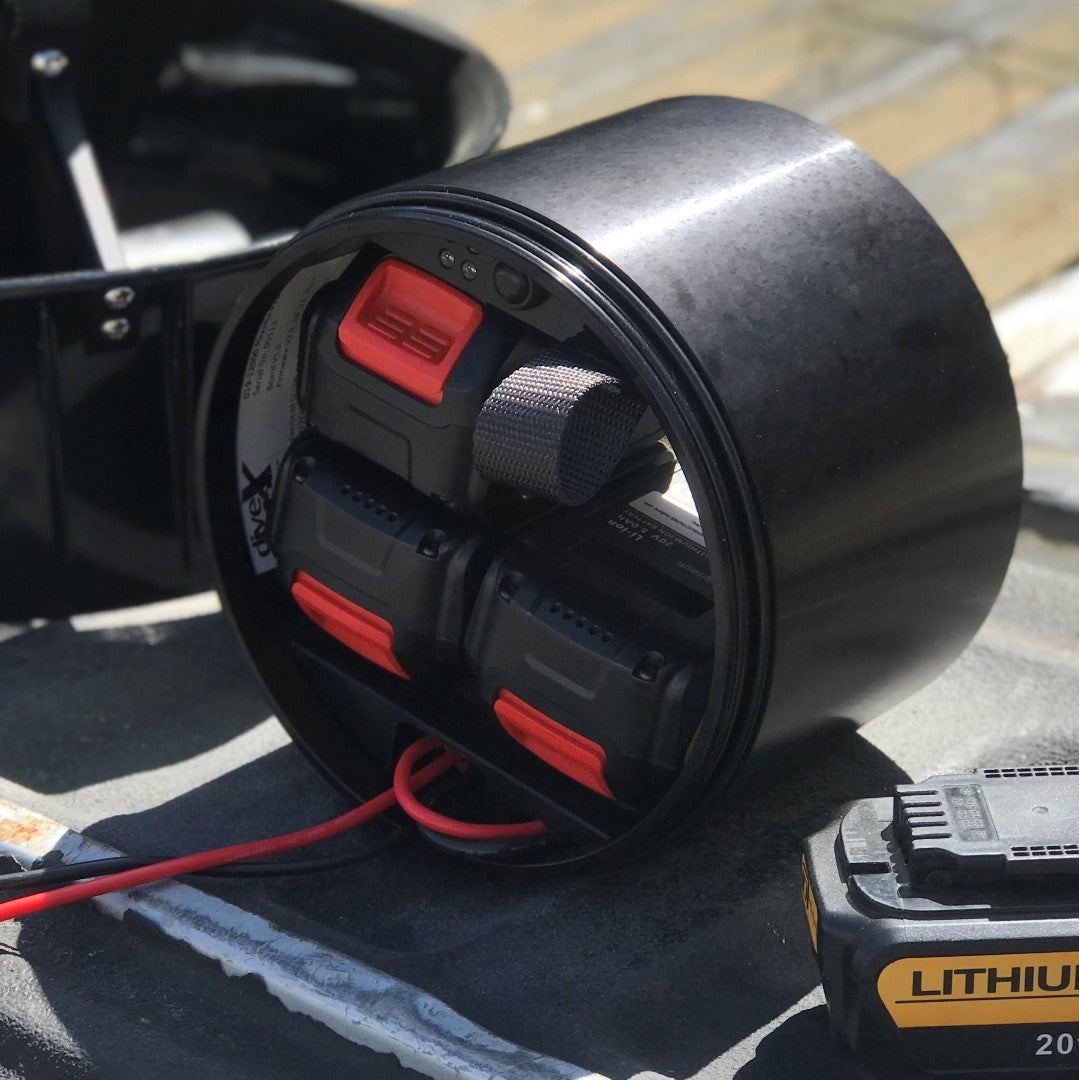

The battery is a housing into which four power tool batteries (that you can source online or at your local hardware store) are dropped in to create a larger battery. This offers some huge advantages to you, the diver:

  • Battery packs are available almost anywhere in the world.
  • It can travel with you on regular airline flights*
  • Same size, weight, capacity, and power as the original Piranha battery
  • No hazmat shipping when purchasing
  • Easy to replace packs as they age and deteriorate.

*Each pack is less than 100wh and is compatible with current airline regulations.

Power Tool Battery Module (battery packs not included) with Universal Strap and extra trim weights.

To use, the purchaser will need to source their own power tool batteries as described below and the relevant chargers.

Specifications

Chemistry Lithium Ion
Voltage 4 x 18v or 20v packs combined series and parallel to total 36-40V
Capacity 4 x 100Wh/5Ah packs combined to total 400Wh/10Ah
Charge Time Each pack is charged individualy. A fast charger wiill charge a pack in less that 1 hour. Total time to charge 4 packs is dependent on the number of chargers.
Protection Individual pack monitoring and fuse.

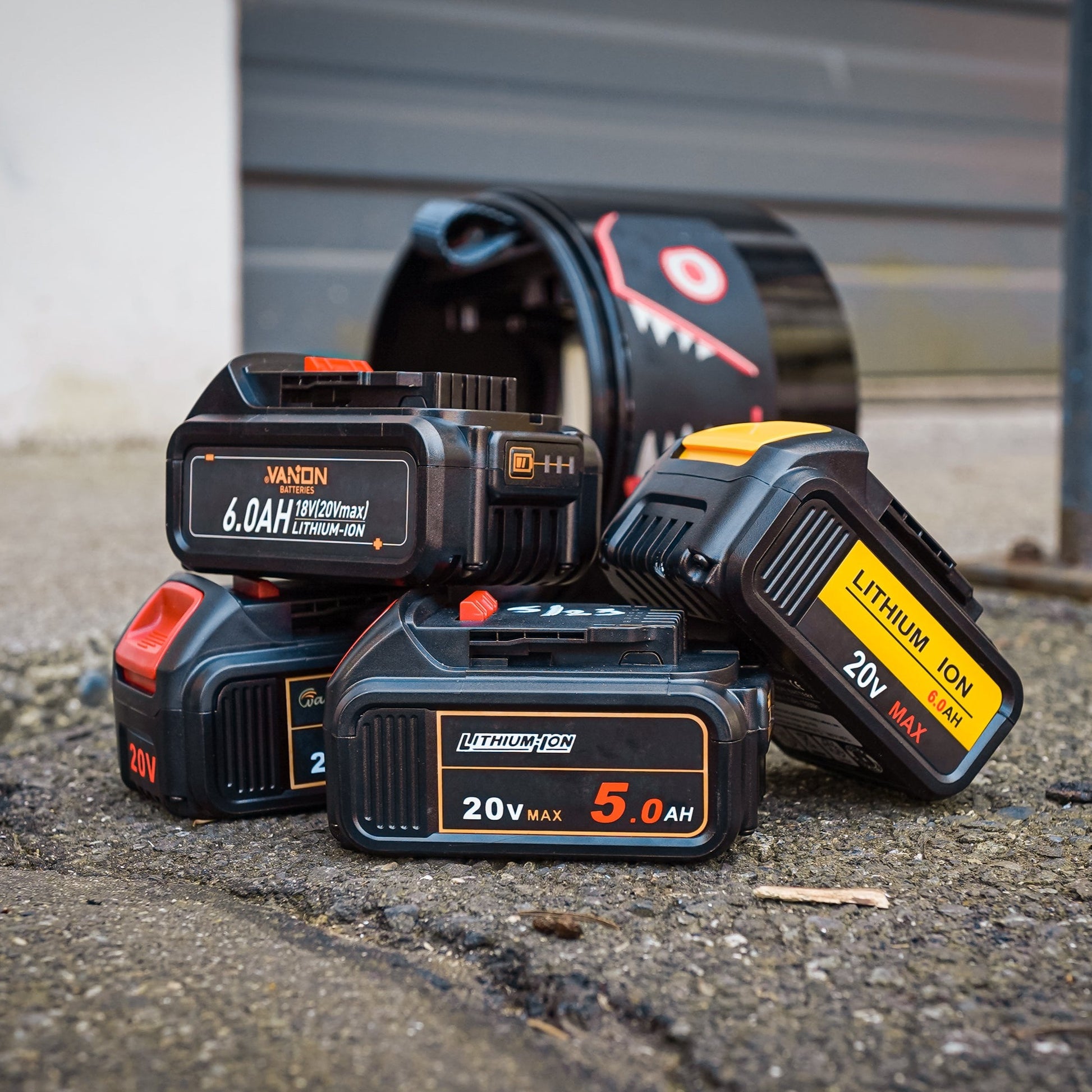

Compatible with 5Ah, 20v (USA only) or 18v batteries that fit the DCB interface.

Tested with the following batteries:

A 5.0Ah pack must be used to achieve the rated performance. Other packs may work; however, performance and buoyancy will be affected.

Battery is not compatible with all packs that fit the DCB interface. You can buy many different packs, with a wide range of capacities. ONLY 5Ah batteries will fit inside the PTB Module housing.

Important Facts

Don't leave your battery connected to your scooter for long durations. Even though there is protection, it may over-discharge the battery. Always connect your battery just before a dive and disconnect it soon after.

For air travel, always check current regulations. Travel typically requires you to carry the individual power tool modules in your hand luggage.

For US customers, you have the option of purchasing the PTB Module Kit with or without packs and a charger. For international customers, you can only purchase it without packs and chargers.

The best option for all customers is to purchase it without packs and chargers, and then source your own locally.

Included in the box will be:

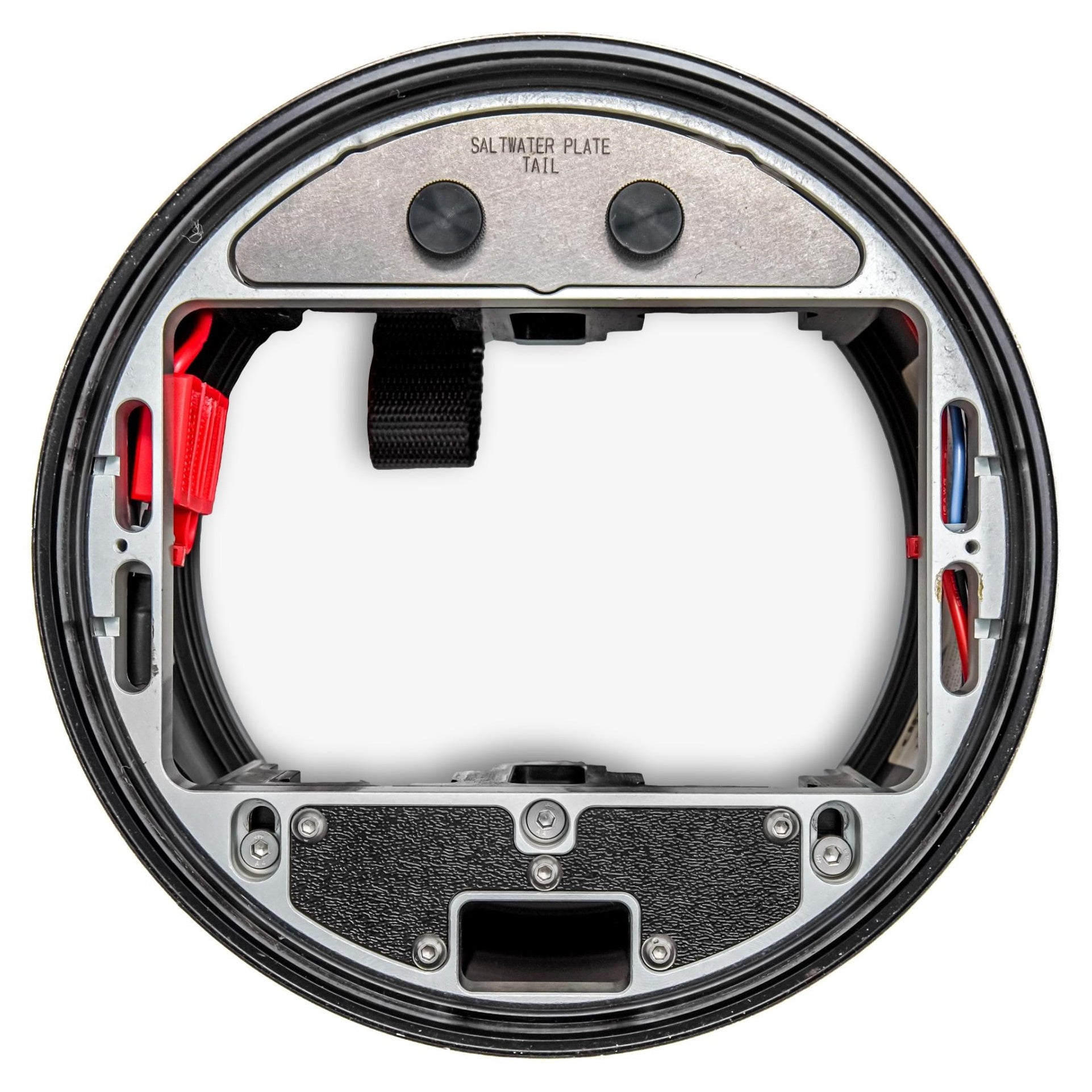

  • PTB Module Body Tube
  • Salt and freshwater trim weights
  • Universal strap to be used in P2 or P3 configurations.

If you do purchase it with packs and chargers, we will drop ship 4 packs and a dual charger to you from an online supplier.
