Part: 2P–IL–F–BH–90–3750

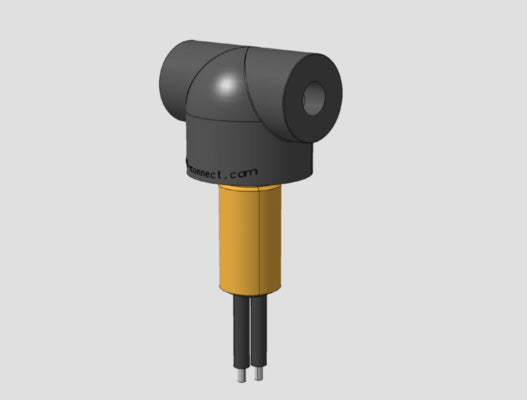

LA very clean two pole wetmatable underwater electrical connector with only one extended pin. This design has been used for years and is simple and reliable. It has the advantage of no blind holes so when mating the contacts, they are wiped clean and any debris is pushed out of the connector.

Ideal for underwater connector applications that simply require two poles.

This connector consists of a 90 deg bulkhead that can be used to bring cables through a rigid bulkhead or housing. With a suitable nut and washer (not supplied) this bulkhead can be fitted to almost anything with the correct sized mounting hole.

Specifications

• Model: 2P–IL–F–BH–90–3750
• Series: Inline
• Type: 90° Female Bulkhead
• Poles: 2
• Max Voltage: 300V
• Max Current: 10A
• Wet Matable: Yes
• Cable Type: 2/C 18 AWG
• Cable length: 8in
• Depth Rating: 10,000ft

Materials:

• Pin: CA-360 Brass, Gold Plated
• Socket: Beryllium Copper, Gold Plated
• Connector Body: Neoprene
• Cable: Cable specific, typically EPDM
• Bulkhead Insert: CA–360 Brass
• Thread: 3/8-24 x 3/4" Long
• Sealing: 2-045 O-Ring (Not supplied)+Integral Lip

CAD Models

Download 3d and 2D CAD files of this underwater electrical connector. File formats include IGES(.IGS), STEP(.STP) and PDF.
